CST2008与ADS2008的CO-simulation的问题

05-08

CST2008SP5、SP6只有gem_CstCmptDLL29.dll和gem_CstCmptDLL31.dll,对应的ADS版本是ADS2005A和2006A,但是用上了ADS2008,只有个gem_CstCmptDLL33.dll,请问是不是得装CST2009才有gem_CstCmptDLL33.dll?

没用过协同仿真,友情支持一个

楼住能不能提供一下ADS2005与CST2008协同仿真的资料,或者给几个设计实例

论坛上有个帖子,将这个的,你可以看看

将cst中的gem_CstCmptDLL33.dll复制到ads安装目录的bin文件夹中替换原来的即可。

见CST2009 README:This directory contains the CST plugin for Agilent ADS which is required to run the co-simulation.
The plugin is designed to work together with ADS 2005A and above.
Please perform the following steps in order to install the plugin:
1. Locate the "bin" directory of your ADS installation. This directory should already contain
files needed for the plugin. The names of the files are:
"gem_CstCmptDLL29.dll" in ADS 2005A,
"gem_CstCmptDLL31.dll" in ADS 2006A and
"gem_CstCmptDLL33.dll" and "gem_CstCmptDLL33.dll.manifest" in ADS 2008.
2. Rename the existing files:
"gem_CstCmptDLL29.dll" to "gem_CstCmptDLL29.dll_old" (ADS 2005A) or
"gem_CstCmptDLL31.dll" to "gem_CstCmptDLL31.dll_old" (ADS2006A) or
"gem_CstCmptDLL33.dll" to "gem_CstCmptDLL33.dll_old" and
"gem_CstCmptDLL33.dll.manifest" to "gem_CstCmptDLL33.dll.manifest_old" (ADS2008).
3. Copy the CST dll
"gem_CstCmptDLL29.dll" (ADS 2005A) or
"gem_CstCmptDLL31.dll" (ADS 2006A) or
"gem_CstCmptDLL33.dll" (ADS 2008)
(from the same directory as this README file) into the ADS bin directory.

CST2009才有的"gem_CstCmptDLL33.dll",2008SPX都没有。
ADS2009是"gem_CstCmptDLL35.dll",就不知道得用哪个版本的CST才能CO-simulation了。

支持一个

CST 2008_SP6 + ADS2008, 2008U1, 2008U2
所有動作都照做..
一樣將此文檔(gem_CstCmptDLL31.dll) copy到 ADS2008\Bin\
gem_CstCmptDLL31.dll 自行 改檔名 gem_CstCmptDLL33.dll
你就可以用了...

:43bb,还可以这样改呀!整了几天没搞定,不得已用09的,还是谢谢楼上的了!

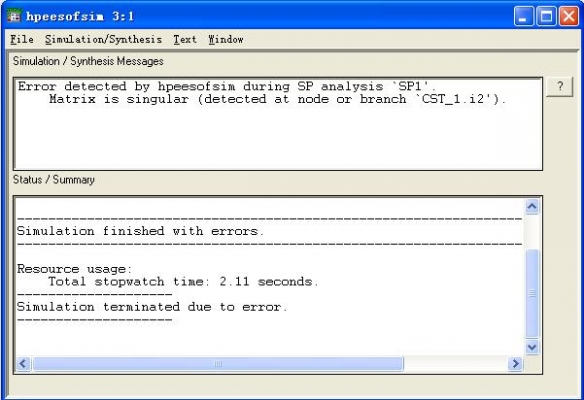

还有人再做协同仿真的吗?有问题想请教,ADS2009和CST2009 SP7出现以下提示,是什么问题呢?
