Working with the Message Manager
The Message Manager displays messages associated with a project’s development, such as error messages about the design’s setup or informational messages about the progress of an analysis. Error messages contains timestamps with a precision of seconds.
To display or hide the Message Manager:
Click View> Message Manager.
A check box appears next to this command if the Message Manager is visible.

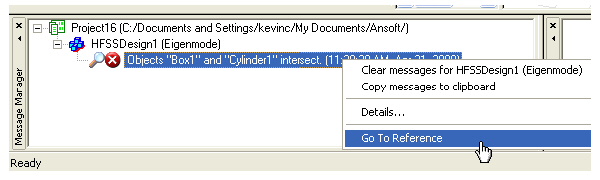

If you right click in the Message Manager window, you see a popup menu that lets you:
Clear the messages for the current model.
Copy the messages to the clipboard. This can be helpful for sending the messages to application engineers.
Details. This brings up a information dialog with the project and design for specific message.
After you run a validation check, you can right-click on an intersection error message in the Message window, and select Go to reference from the shortcut menu. This selects the intersecting objects.
![[spacer]](1p.gif)

Related Topics
Showing new messages
Showing errors and warnings
Setting the Message Manager to Open Automatically
-
