Plotting Field Overlays > Setting Field Plot Attributes > Modifying Field Plot Colors

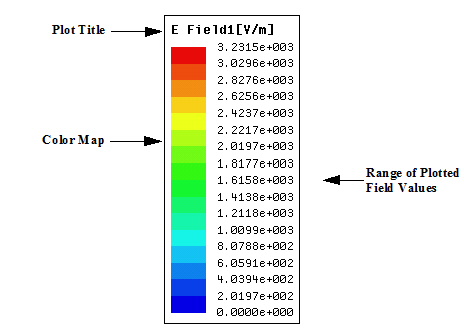

Setting the Color Key Visibility
1. Click View>Active View Visibility.
The Active View Visibility dialog box appears.
2. Click the Color Keys tab.
3. In the Visibility column, select the field overlay or mesh plots in which you want to display the color key. Clear the plots in which you want to hide the color key from view.
4. Click Done to dismiss the dialog box.
Only the color keys in the selected plots will be visible.
