Multiple Geometry Links for CAD Integration

With CAD Integration you can consume geometry from multiple upstream sources. The Source can be any of CAD or ANSYS Electromagnetics products. This creates a UDM for each geometry source.

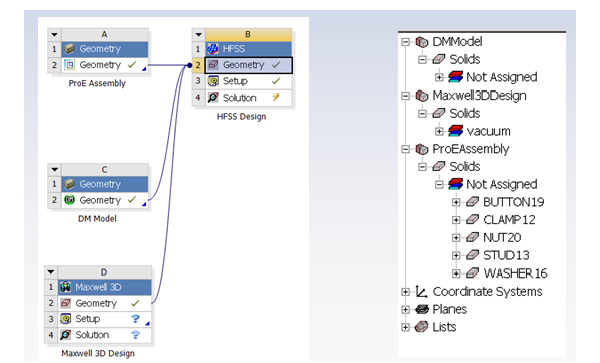

For example, the following figure shows a DM Model, a Maxwell model, and ProE model linked to HFSS in Workbench, and displayed in the HFSS History tree as three UDMs.
