ANSYS Workbench Integration Overview > ANSYS EM to ANSYS Geometry Transfer

Geometry Transfer through ANSYS DesignModeler (DM)

It is possible to edit geometry in ANSYS DesignModeler (DM) before consuming in Mechanical

• Useful when geometry needs preprocessing for ANSYS simulation

• Can take advantage of geometry commands available in DM

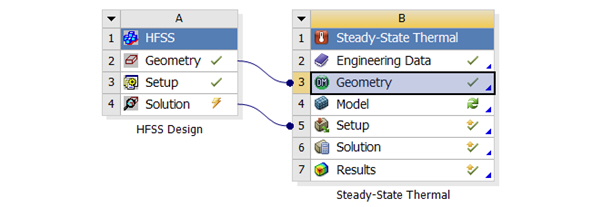

For example, consider an HFSS model linked to DM through the Workbench.

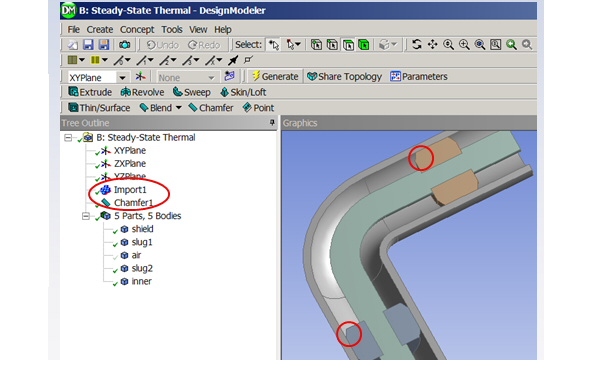

In this case, the figure below shows how a chamfer operation on geometries is imported.

It is possible to edit geometry in ANSYS DesignModeler (DM) before consuming in Mechanical

• Useful when geometry needs preprocessing for ANSYS simulation

• Can take advantage of geometry commands available in DM
