Variables in Designer >
Exporting Variables for Documentation

Exporting Variables for Documentation

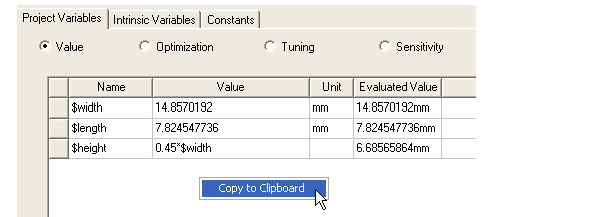

By right-clicking in the Project Variables dialog, you can copy a a list of variables and their values to the clipboad. You can then paste these variables elsewhere.

The pasted variables appear in a tab separated column format. Fields that do not contain values are left blank:

Name	Value	Unit	"Evaluated Value	"Description	Read-only	Hidden
$width	14.8570192	mm	14.8570192mm		false	false
$length	7.824547736	mm	7.824547736mm		false	false
$height	0.45*$width		6.68565864mm		false	false
