Ansoft Designer / Ansys Designer 在线帮助文档：

Transmission Line Designer >
   TRL Overview >
       Starting Transmission Line Synthesis


Starting Transmission Line Synthesis

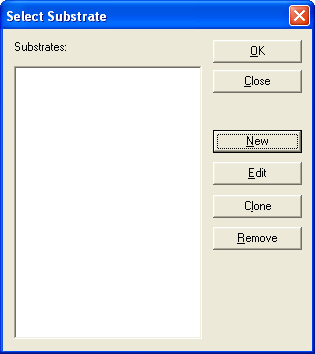

The Transmission Line Designer is run from within a system or nexxim design, so you must first insert a design before starting the TRL. You can insert a system design by clicking Insert System Design or Insert Circuit Design on the Project menu. The Transmission Line Designer can be started by choosing the desired transmission line type under the cascading TRL item on the System or Nexxim menu. A Select Substrate dialog will first appear where you can choose an existing substrate definition or create a new one.

[spacer]

Once a substrate definition is chosen a Transmission Line dialog similar to the following will appear to prompt you through a Transmission Line synthesis session.
