Ansoft Designer / Ansys Designer 在线帮助文档：

System Simulator >
System Component Models >
Stripline >
   SL Gap, Symmetric (SLGAP)

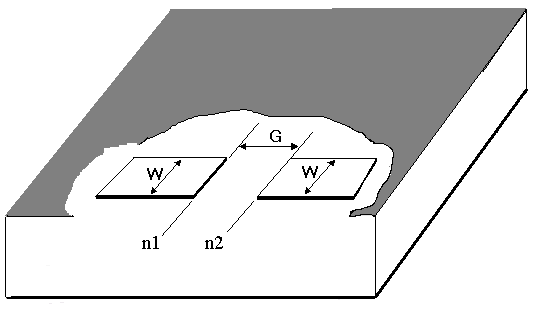

SL Gap, Symmetric (SLGAP)



[spacer]



[spacer]




Properties

Description

Units

Default

Range

W

Line width

m

Required

> 0

G

Gap distance

m

Required

> 0

sub

Substrate name

none

Required

string

Notes

1. The following conditions should be satisfied: G/B > 0.01, and B/lg < 1.0, where B is the dis­tance between the ground planes defined in the .SUB statement, and lg is the guide wave­length.

Netlist Form

SLGAP:NAME n1 n2 W=val G=val SUB=label

Netlist Example

SLGAP:GAP1 1 2 W=32MIL G=16MIL SUB=SUB1

where SUB1 needs to be defined in the corresponding .SUB statement.
