Schematic Editor >
   N-Ports in Designer >
       Creating an N-Port Model >
           Noise Data Tab


Noise Data Tab

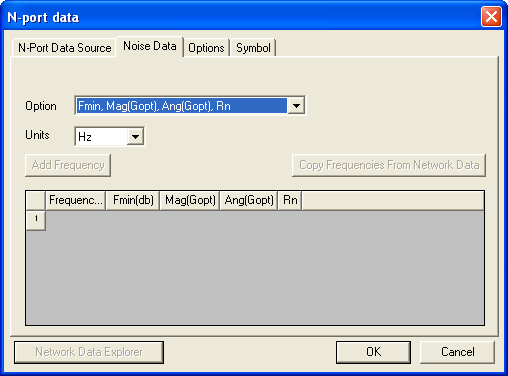

Use the Noise Data tab to enter frequency-dependent noise parameters.



• The Option field selects the units for the noise parameters:

• The Units field selects the units of frequency: Hz, KHz, MHz, GHz, THz, or rps.

• Use the Copy Frequencies from Network Data button to create a list of frequencies that correspond to the frequencies in the N-port data file.

• Use the Add Frequency button to add a new frequency to the end of the list.

• Network Data Explorer allows you to view soltuion data by opening the Network Data Explorer.



Enter the noise data for each frequency in the list, then click OK or select another tab.
