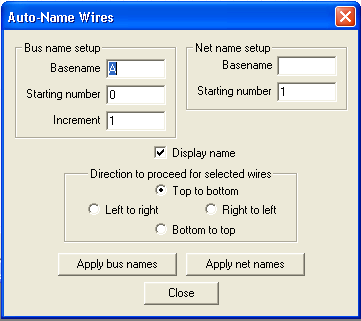

Schematic Editor > Net and Bus Auto-NamingSelected wires can be named as a group with either bus-style names or net-style names (A[0], W1) using the Auto-Name Wires dialog. In the Schematic Editor, select the wires to be auto-named, then left-click on Schematic in the top menu bar and select Auto-Name Wires . The Auto-Name Wires dialog box opens.
Adjust the Bus name setup or Net name setup, depending on which naming style you want to use. Toggle Display name off if you do not want the wire names to display on the schematic. Select the direction for applying the names to the selected wires. Click the desired Apply button to set the names of the selected wires. Click Close to end the dialog.
