Creating a Parametric N-Port Model

Creating a Parametric N-Port Model

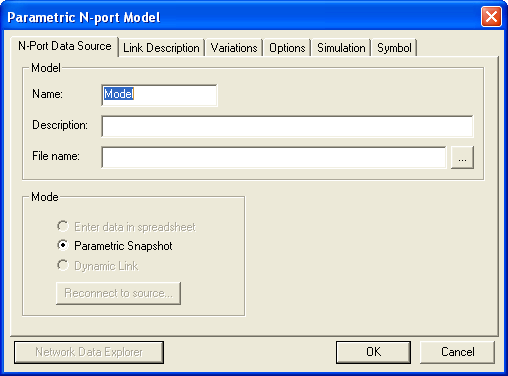

After selecting Add Parametric Model from the Add Model submenu of the Project menu, the Parametric N-port Model dialog opens.

The Parametric N-port Model dialog allows you to specify the basic characteristics of each Parametric N-port black box you wish to place in a Designer schematic or layout. The following tabs are available:

• N-Port Data Source Tab

• Link Description Tab

• Options Tab

• Simulation Tab

• Symbol Tab
