Accessing Library Files

A schematic design can reference a library file block.

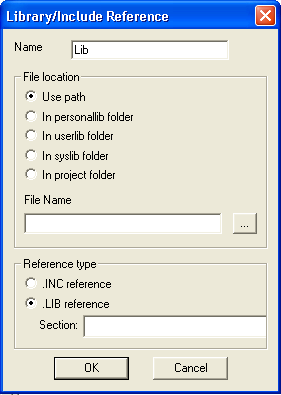

To add a block from a library file to a schematic, expand the icon for the design in the schematic editor by clicking on its plus sign (the design typically has a name such as “Nexxim1”). Right-click on the Data icon, then select Add Library/Include File from the pulldown. The Library/Include Reference dialog box opens:

Select .LIB reference as the Reference type. The Section field is activated.

Enter the name for the library file data as it will appear in the Data folder in the Project tree.

Select one of the standard folders if applicable, enter the filename and section (block) name. (Note that the syslib directory is reserved for libraries supplied with Designer.)

If the library file is not in one of the standard folders, select Use path, enter the complete pathname and filename. Click the ellipsis button [...] to browse for the directory. When the pathname and filename are correct, enter the section (block) name. (Note that components or libraries that are imported with Use Path may not be portable if the project is moved to another machine.)

When the In project folder button is selected, references to the file in the design are relative to the directory where the project resides. In this case, the path is saved in the project .adsn file as a variable such as:

.lib '$PROJECTDIR/x_113854.lib'

The variable $PROJECTDIR will be expanded to the current location of the project when the design is converted to a netlist and run by an analysis tool. Otherwise, an absolute path is saved. If you move a project and its library files together to a new directory, you can preserve the file references by selecting the Project Folder option.

Enter the name of the library block in the Section field.

Click OK to add the library file data to the design.
