       When HFSS Needs Port Calibration (deembedding)


When HFSS Needs Port Calibration (deembedding)

• If regular (perfect) ports are used, HFSS does not need any port calibration

• If inperfect ports are used (internal lumped port), HFSS also needs some part calibration (deembedding)

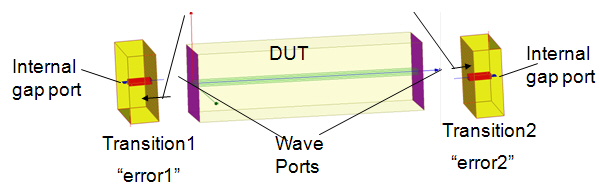

Deembedding extension/transition effects

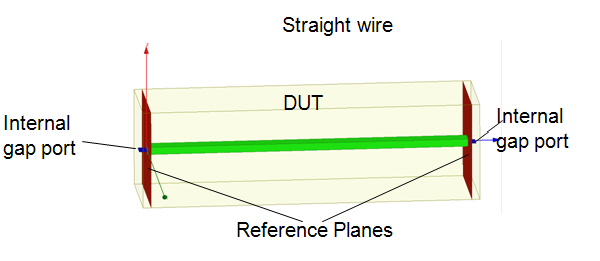

Deembedded to the discontinuity



Deembedding extension/transition Z matrix method (simplified approximation)

[spacer]

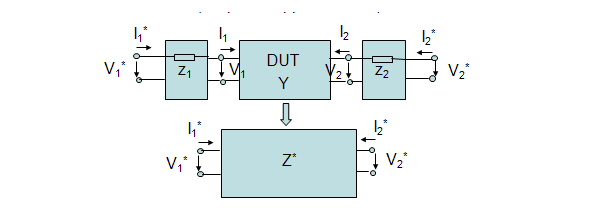

Impedance matrix Z* is meaured/simulated. Where Z1 and Z2 are known, calculate/deembed Z matrix



Z Matrix Method



Measured/Calculated







(1)

Dembedded







(2)









(3)







(4)
