       Thin Film Properties


Thin Film Properties

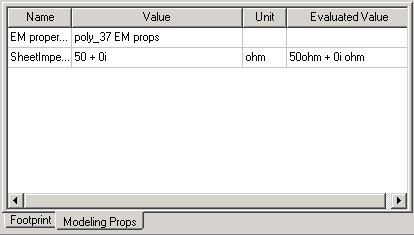

To define an object as a Thin Film Resistor, select one or more objects in the layout editor and click Draw > EM Design Properties > Convert to Thin Film Resistor. This defines the object(s) as a resistor and adds the Modeling Props tab to the Property Window:

[spacer]

The following meshing controls are available under the Modeling Props tab of the Property window:

• SheetImpedance specifies the object impedance value

Select items one by one in the editor to modify their Modeling Properties in the Property Window. To remove the Modeling Properties tab from the Property Window, click Draw > EM Design Properties > Remove Thin Film Resistor Property.
