Representation of the Current

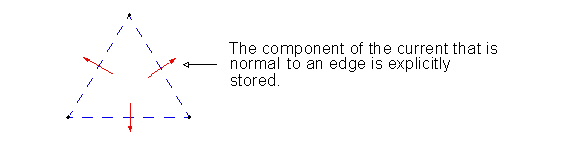

The value of the current at points inside each basis element (triangle or rectangle) is interpolated from the edges of the basis element. On each basis element, Designer stores the components of the current that are normal to the edges of the element. The current inside each element is the superposition of these normal values.
