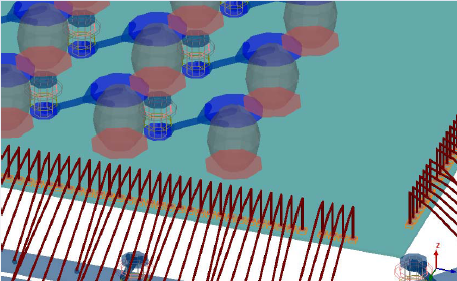

HFSS and Planar EM Simulators > Gap(coax) PortsThe Gap(coax) lumped port is commonly used to excite terminals at package interfaces. Common applications include excitation of vias, bondwires, and solderballs. Ports create circular geometry, the 2D cross-section for which should resemble a coaxial conductor.
![[spacer]](1p.gif){kind=small}
The following pre-simulation validation checks apply: • Port geometry does not intersect other port geometry • Circumference is wholly contained by conductor
Note that, unlike other port types, terminal identification is performed post-mesh by the solver.
The topics for this section include: Terminal Assignments in Gap(coax) Ports
