   Voltage Probe

Voltage Probe



Voltage Probe Netlist Format

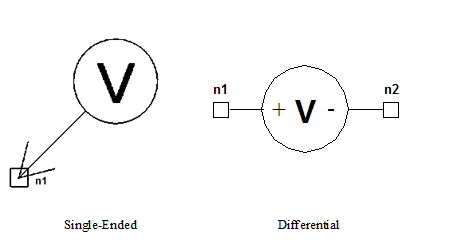

A .PRINT statement is automatically inserted in the netlist for a voltage probe that is added in the schematic. The PRINT statement appears only when there is an analysis defined for the design.

.PRINT analysis_type V(n1) // Single-ended

.PRINT analysis_type V(n1, n2) // Differential

n1 is the node to which the single-ended voltage probe is attached. n1 and n2 are the positive and negative nodes attached to a differential voltage probe. Analysis _type identifies the analysis (TRAN, HB, etc.)
