Ansoft Designer / Ansys Designer 在线帮助文档:


Nexxim Simulator >
Nexxim Component Models >
Controlled Sources >
   Voltage-Controlled Voltage Source, Behavioral (Netlist Only)

Voltage-Controlled Voltage Source, Behavioral (Netlist Only)



Behavioral VCVS Netlist Format

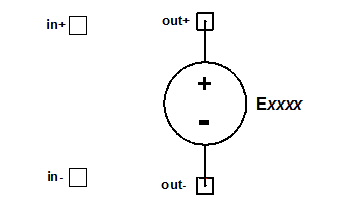

The format for a behavioral voltage-controlled voltage source (VCVS) is:

Exxxx out+ out- VOL='expression' [MAX=val] [MIN=val]

out+ is the positive node and out- is the negative node of the voltage source.

The expression should be enclosed in single or double quotes. The expression defines the output voltage V(out+) - V(out-) as a function of the input voltage V(in+, in-) and other values in the circuit. See Expressions for details.

If the result of the expression is less than MIN,

V(out+) - V(out-) = MIN

If the result is greater than MAX,

V(out+) - V(out-) = MAX



Note

The Behavioral VCVS is available for use in netlists, but is not supported in the Components window of the Designer Schematic Editor.






Behavioral VCVS Instance Parameters

Parameter

Description

Unit

Default

MAX

Maximum output voltage

Volt

None

MIN

Minimum output voltage

Volt

None

VOL

Expression for output voltage

Volt

None


Netlist Example

E5 5 0 VOL='V(23,0)/2' MAX=5 MIN=1
