   Voltage-Controlled Current Source, Behavioral (Netlist Only)

Voltage-Controlled Current Source, Behavioral (Netlist Only)



Behavioral VCCS Netlist Format

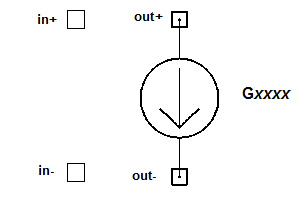

The format for a behavioral voltage-controlled current source (VCCS) is:

Gxxxx out+ out- CUR='expression' [MAX=val] [MIN=val]

[M=val] [SCALE=val]

out+ is the positive node and out- is the negative node of the current source.

The label CUR= is optional, but the expression must be given, and should be enclosed in single or double quotes. The expression defines the output current as a function of the input voltage V(in+, in-) and other values in the circuit. See Expressions for details.



Note

The Behavioral VCCS is available for use in netlists, but is not supported in the Components window of the Designer Schematic Editor.






Behavioral VCCS Instance Parameters

Parameter

Description

Unit

Default

CUR

Expression for output current

Amp

None

M

Multiplier to simulate multiple elements

None

1.0

MAX

Maximum output current

Volt

None

MIN

Minimum output current

Volt

None

SCALE

Multiplier for current

None

1.0


Netlist Example

G21 21 0 CUR='V(25,0)/2' MAX=5.0e-3 MIN=0.1e-3
