Ideal Inductor, Toroidal



[spacer]



[spacer]



Netlist Syntax

The general syntax for an ideal toroidal inductor is:

Axxxx n1 n2 N=val AL=val COMPONENT=toroidal_inductor

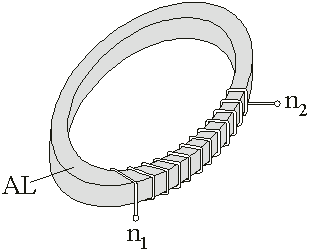

n1 is the positive node and n2 is the negative node of the inductor. The current is assumed to flow from n1 through the inductor to n2.

The parameter COMPONENT=toroidal_inductor identifies the element as an ideal toroidal inductor.




Ideal Toroidal Inductor Instance Parameters

Instance Parameter

Description

Unit

Default

N

Number of turns

None

None

AL

Inductance per turn

1/Henry

None




Inductor Instance Netlist Example

Atrindi1 1 2 N=100 AL=5e-9 COMPONENT=toroidal_inductor

Notes

1. Inductance L
