   Transformer, M x N coils

Transformer, M x N coils



Netlist Form

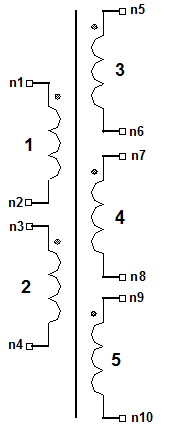

An instance of a transformer with M input coils and N output coils (M=2, N=3 in the illustration above) has the following Nexxim netlist syntax:

Axxx n1 [... n2M] n2M+1 [... n2M+2N] M=num_inputs N=num_outputs K=[k12 ... k1M k1(M+1) ... k1N] COMPONENT=transformer_MxN

n1 through n2M are the nodes connected to the input transformers. n2M+1 through n2M+2N are the nodes connected to the output transformers. The entry COMPONENT=transformer_MxN identifies the element.




Transformer, MxN Instance Parameters

Parameter

Description

Units

Default

M

Number of input coils

None

1

N

Number of output coils

None

1

K

Vector of coil ratios

None

Vector of all 1’s

k12

Turn ratio of coil 2 to coil 1

None

1

k1M

Turn ratio of last input coil M to coil 1

None

1

k1(M+1)

Turn ratio of first output coil to coil 1

None

1

k1N

Turn ratio of last output coil N to coil 1

None

1


Netlist Example

Atrf2x3 in1 in2 in3 in4 out1 out2 out3 out4 out5 out6 M=2 N=3
+ K=[2.2 3.3 4.4 5.5 ] COMPONENT=transformer_MxN
