Ansoft Designer / Ansys Designer 在线帮助文档:


Nexxim Simulator >
Nexxim Component Models >
Lumped Elements General >
   Transformer, 1 x 1 coils

Transformer, 1 x 1 coils



[spacer]

Netlist Form

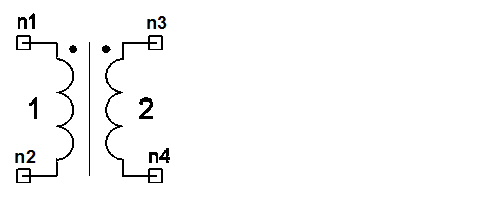

An instance of a 1x1 transformer has the following Nexxim netlist syntax:

Axxx n1 n2 n3 n4 N=val COMPONENT=transformer_1x1

n1 and n3 are the nodes connected to the input transformer. n2 and n4 are the nodes connected to the output transformer. The entry COMPONENT=transformer_1x1 identifies the element.




Transformer, 1x1 Instance Parameters

Parameter

Description

Units

Default

N

Turn ratio of coil 2 to coil 1

None

1


Netlist Example

Atrf1x1 1 2 3 4 N=3 COMPONENT=transformer_1x1
