   T-Element Lossless Transmission Line

T-Element Lossless Transmission Line



T-Element Instance Netlist Syntax

The netlist syntax for a lossless transmission line instance has three possible forms:

Txxxx in invref out outvref Z0=imped TD=delay

or

Txxxx in invref out outvref Z0=imped F=freq NL=normlen

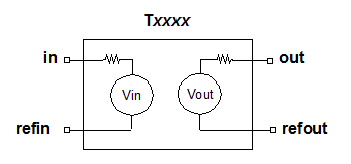

In both forms, node in is the input signal node and node invref is the input reference node. Nodes out and outvref are the corresponding output signal node and output reference node.




Lossless Transmission Line Instance Parameters

Instance Parameter

Description

Unit

Default

F

Frequency (required only when TD not specified)

Hertz

None

NL

Normalized length with respect to wavelength (required only when TD not specified)

None

0.25 (quarter-wavelength)

TD

Time delay

Second

Calculated

Z0

Characteristic impedance

Ohm

None




T-Element Instance Netlist Example

T1 10 0 12 0 Z0=50 TD=0.7e-8

T2 11 0 13 0 Z0=50 FREQ=5e+9
