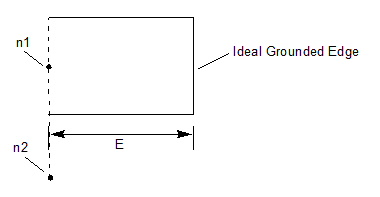

   Shorted Stub, Electrical Length with Reference

Shorted Stub, Electrical Length with Reference



[spacer]





Netlist Format

An instance of an ideal shorted stub, electrical length with reference has the following netlist syntax:

Axxx n1 n2 Z=val E=val A=val F=val COMPONENT=ideal_shorted_stub_electrical

n1 is the name of the node attached to the shorted stub. n2 is the reference node. The entry COMPONENT=ideal_shorted_stub_electrical identifies the element as an ideal shorted stub, electrical length with or without a reference node.




Ideal Shorted Stub, Electrical Length with Reference, Instance Parameters

Parameter

Description

Units

Default

Z

Characteristic impedance

Ohm

50.0

E

Electrical length at reference frequency

Degree

45

A

Attenuation at reference frequency

dB/m

0.0

F

Reference frequency

Hz

1e9

Netlist Example

A44 Port1 Port 2 E=45 F=1.0e9 COMPONENT=ideal_shorted_stub_electrical
