   Inductor, Solenoidal

Inductor, Solenoidal



[spacer]



[spacer]



Netlist Syntax

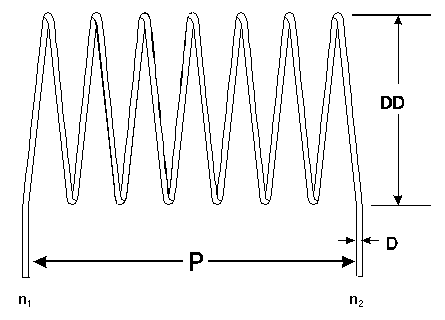

The general syntax for a solenoidal inductor is:

ASOLINDxxxx n1 n2 N=val DD=val P=val RB=val D=val COMPONENT=solenoidal_inductor

n1 is the positive node and n2 is the negative node of the inductor. The current is assumed to flow from n1 through the inductor to n2.

The parameter COMPONENT=solenoidal_inductor identifies the element.




Solenoidal Inductor Instance Parameters

Instance Parameter

Description

Unit

Default

N

Number of turns

None

None

DD

Diameter of the winding

Meter

2.54e-3

P

Length of the inductor

Meter

5.08e-3

RB

Conductor resistivity

m-ohm/cm

1e-3

D

Diameter of the wire

Meter

2.54e-4




Inductor Instance Netlist Example

ASOLIND1 1 2 N=100 DD=2e-3 P=6.7e-3 RB=5e-4 D=1e-4
+ COMPONENT=solenoidal_inductor
