   Terminal to Differential and Common Mode Converter

Terminal to Differential and Common Mode Converter



Netlist Form

This component is available for Nexxim schematic designs in Designer. Select the component (SnglNd2DandC) from the lumped_general category of Nexxim components. The netlist generated by the terminal to differential and common mode converter has the following two-line Nexxim netlist syntax:

AxxxA n2 0 n3 n1 N=2 COMPONENT=transformer1x1
AxxxB n2 0 n1 n4 N=2 COMPONENT=transformer1x1

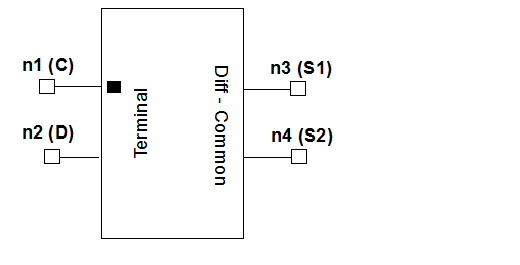

n1 (C), n2 (D), n3 (S1) and n4 (S2) are the nodes connected to the mode converter. The entry COMPONENT=transformer1x1 identifies underlying transformers.

Netlist Example

A2485A net2 0 net3 net1 N=2 COMPONENT=transformer1x1

A2485B net2 0 net1 net4 N=2 COMPONENT=transformer1x1

Notes

1. This mode converter incorporates two ideal transformers. The single-ended terminals (S1 and S2) are converted to both differential and common mode terminals (D and C). The user must supply appropriate terminations.
