Via Pad

Via Pad

Netlist Format

A via pad instance has the following netlist format:

Axxx n1 [n2 n3 n4] [D=val] [DG=val] [W=val] COMPONENT=viapad

SUBSTRATE=substrate_name

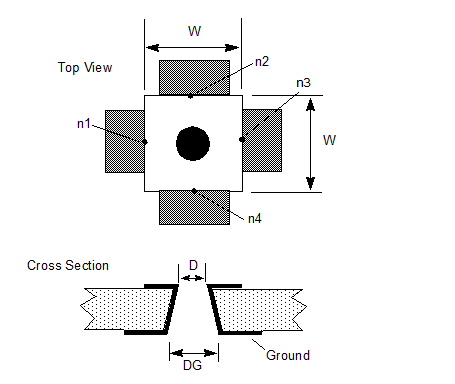

n1 through n4 are the names of the nodes attached to the via pad. Any nodes not specified are modeled as open stubs. A fifth node is connected to ground, and is not shown in the syntax. The entry COMPONENT=viapad identifies the element as a via pad.

The entry SUBSTRATE=substrate_name identifies the Stripline substrate model name selected for the design (see Selecting a Stripline Substrate). See the Stripline (SL) Substrate for information on this substrate type.

**Via Through Hole Instance Parameters**
Parameter	Description	Unit	Default
D	Diameter of upper via hole	Meter	0.5e-3
DG	Diameter of lower via hole	Meter	D
W	Width and length of square pad	Meter	1e-3

Netlist Example

A23 Port1 Port2 Port3 Port4 D=0.0005 W=0.001
+ COMPONENT=viapad SUBSTRATE=SL1

where SL1, the selected layout technology or substrate type, has a definition such as:

.SUB SL1 SL( B=0.001524 Er=4.40000000000000
+ TAND=0.0200000000000000 MET1=1.72413793103448
+ T1=1.7145e-005 RGH=0mil)

Notes

1. [All substrates] The pad is connected through a via to a ground.

2. [All substrates] The pad is square.

3. [All substrates] Unconnected nodes are considered to be open.

4. [All substrates] Transitions to connected transmission lines are not included in this model.
