Ansoft Designer / Ansys Designer 在线帮助文档：

Nexxim Simulator >
Nexxim Component Models >
Stripline Elements >

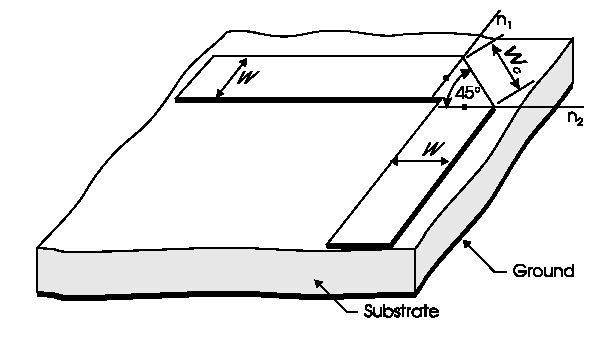

   Bend, Optimally Mitered

Bend, Optimally Mitered



[spacer]



Netlist Form

Axxxx n1 n2 W1=val COMPONENT=optimally_mitered_bend SUBSTRATE=substrate_name

n1 and n2 are the names of the nodes attached to the mitered bend. The entry COMPONENT=optimally mitered_bend identifies the element as a mitered bend.

The entry SUBSTRATE=substrate_name identifies the stripline substrate model name selected for the design (see Selecting a Stripline Substrate). See the Stripline (SL) Substrate for information on this substrate type.




Mitered Bend Instance Parameters

Parameter

Description

Unit

Default

W

Width of line

Meter

0.001

Netlist Example

A23 Port1 Port2 W1=3e-4
+ COMPONENT=optimally_mitered_bend SUBSTRATE=SL1

where SL1, the selected layout technology or substrate type, has a definition such as:

.SUB SL1 SL( B=0.001524 Er=4.40000000000000
+ TAND=0.0200000000000000 MET1=1.72413793103448
+ T1=1.7145e-005 RGH=0mil)

Notes

1. [All substrates] Conditions for accurate results: Frequency £18 GHz, 2.2 £ εr £25,
W/H ³ 0.25

2. [All substrates] The miter is 45º and the length Wc is given by
