   Transmission Line, Physical Length

Transmission Line, Physical Length





Netlist Format

An instance of a transmission line with physical length has the following netlist syntax:

Axxx n1 n2 [W=val] [P=val] COMPONENT=trl SUBSTRATE=substrate_name

n1 and n2 are the names of the nodes attached to the transmission line. The entry COMPONENT=trl identifies the element as a transmission line with physical length.

The SUBSTRATE=substrate_name is the offset stripline substrate model name selected for the design (see Selecting an Offset Stripline Substrate for details.

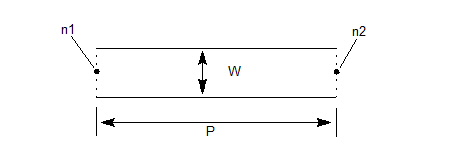

Transmission Line with Physical Length,
Instance Parameters

Parameter

Description

Units

Default

P

Physical length

Meter

1e-2

W

Conductor width

Meter

1e-3

Netlist Example

A23 Port1 Port2 W=1.2700e-004 P=0.001
+ COMPONENT=TRL SUBSTRATE=OSL1

where OSL1, the selected layout technology or substrate type, has a definition such as:

.SUB OSL1 OSL(
+ B=0.001524 Er=4.4 TAND=0.02 BL=2.5400e-004
+ MET1=1.724137931034483 T1=2.5400e-005
+ RGH=0)
