Creating a Custom Offset Stripline Substrate

Creating a Custom Offset Stripline Substrate

To create an offset stripline substrate definition, open the Nexxim design icon (“Nexxim1” for example), then right-click on the Data field. Select Add Substrate Definition from the pulldown.

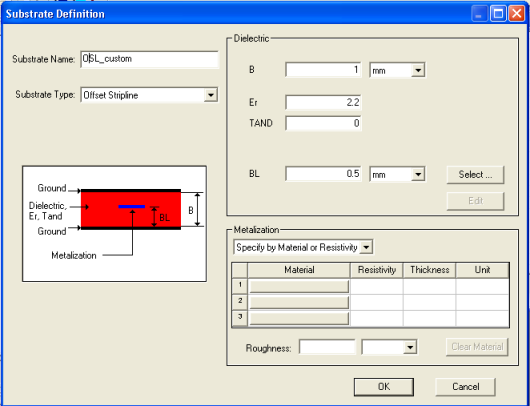

The Substrate Definition window opens. Specify the name of your new substrate (the example below uses the name “OSL_custom”):

Select Offset Stripline as the Substrate Type. Complete the Dielectric and Metallization filed information. Refer to the Offset Stripline(OSL) Substrate help topic for guidelines on defining offset stripline substrates.

When the substrate definition is complete, click OK.

If you selected None for the global substrate type in the Choose Layout Technology dialog, the custom offset stripline substrate becomes the global substrate type.

When an element is instantiated , it includes a SUBSTRATE=substrate_name entry in its netlist syntax. Designer automatically inserts the global substrate_name into the internal netlist entry for the instantiated element.
