Ansoft Designer / Ansys Designer 在线帮助文档:


Nexxim Simulator >
Nexxim Component Models >
Microstrip Elements >
   Multi-Coupled Lines, Differential Pairs, Field Solver

Multi-Coupled Lines, Differential Pairs, Field Solver





Netlist Form

A multicoupled line, two differential pairs, field solver instance has the following netlist syntax:

Wxxx n1 n2 n3 n4 0 n5 n6 n7 n8 0 N=4 L=length FSmodel=modelname

.MATERIAL cond1 METAL CONDUCTIVITY=conductivity
.MATERIAL diel1 DIELECTRIC ER=er LOSSTANGENT=losstangent
.SHAPE rect1 RECTANGLE WIDTH=w HEIGHT=t1 // Conductors
.LAYERSTACK STACK1
+ LAYER=(cond1, t2) // Ground plane
+ LAYER=(diel1, h)
+ LAYER=(AIR, hu)
.MODEL modelname W MODELTYPE=Fieldsolver
+ LAYERSTACK=STACK1
+ CONDUCTOR=(SHAPE=rect1, ORIGIN=(0, 't2 + h')
+ MATERIAL=cond1, TYPE=SIGNAL)
+ CONDUCTOR=(SHAPE=rect1, ORIGIN=('w+gap', 't2 + h'
+ MATERIAL=cond1, TYPE=REFERENCE)
+ CONDUCTOR=(SHAPE=rect1, ORIGIN=('2w+gap', 't2 + h')
+ MATERIAL=cond1, TYPE=SIGNAL)
+ CONDUCTOR=(SHAPE=rect1, ORIGIN=('3w+2gap+sep', 't2 + h')
+ MATERIAL=cond1, TYPE=REFERENCE)

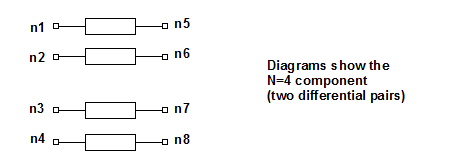

n1, n2, n3, and n4 are the names of the input nodes. n5, n6, n7, and n8 are the corresponding output nodes. The entry N=4 shows that this is a 4-conductor, 2-pair differential line.

The entry FSmodel=modelname identifies the field solver microstrip model.




Multicoupled Line, Differential Pairs, Field Solver

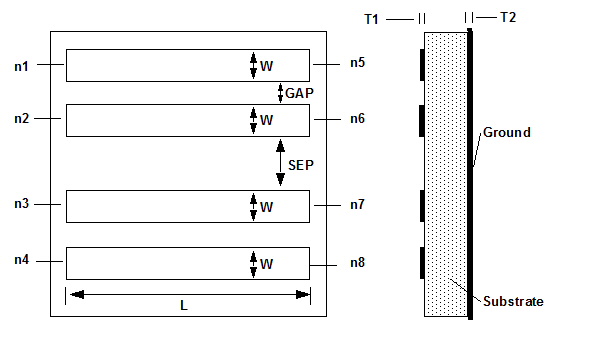

Instance Parameters

Parameter

Description

Units

Default

mod

Name for field solver model. Required for uniqueness if the design has more than one of the same kind of field solver component

None

Required

L

Physical length

Meter

1e-3

N

Number of lines

None

None

w

Width of conductor

Meter

1e-3

gap

Gap width between differential lines

Meter

1e-3

sep

Separation between pairs of lines

Meter

5e-3

t1

Thickness of conductors

Meter

1e-3

t2

Thickness of grounds

Meter

1e-3

h

Thickness of dielectric layer

Meter

1e-3

hu

Thickness of air layer

Meter

1e-3

er

Dielectric constant



2.2

losstangent

Dielectric loss tangent



0

conductivity

Conductivity of conductor material



57.6e6


Netlist Example

W3 Port1 Port2 0 net_1911 net_2 0 N=2 L=0.002 FSmodel=2diffs

.MATERIAL copper METAL CONDUCTIVITY=5.8e7
.MATERIAL dielectric DIELECTRIC ER=4.4 LOSSTANGENT=0.02
.SHAPE RECT1 RECTANGLE WIDTH=.002 HEIGHT=.001 // Conductors
.LAYERSTACK STACK1
+ LAYER=(PEC, .003) // Bottom ground
+ LAYER=(dielectric, .01)
+ LAYER=(AIR, .03)
.MODEL 2diffs W MODELTYPE=Fieldsolver
+ LAYERSTACK=STACK1
+ CONDUCTOR=(SHAPE=RECT1, ORIGIN=(0, '.003+.01')
+ MATERIAL=conductor, TYPE=SIGNAL)
+ CONDUCTOR=(SHAPE=RECT1, ORIGIN=('.002+.004', '.003+.01')
+ MATERIAL=conductor, TYPE=SIGNAL)
+ CONDUCTOR=(SHAPE=RECT1, ORIGIN=('2*.002+.004', '.003+.01')
+ MATERIAL=conductor, TYPE=SIGNAL)
+ CONDUCTOR=(SHAPE=RECT1, ORIGIN=('3*.002+2*.004', '.001+.01')
+ MATERIAL=conductor, TYPE=SIGNAL)
