   MOSFET Instance, RPI Poly-Si TFT Model (Level 62)

MOSFET Instance, RPI Poly-Si TFT Model (Level 62)



Poly-Si TFT MOSFET Instance Netlist Syntax

RPI Poly-Si TFT MOSFET instances use the following netlist syntax:

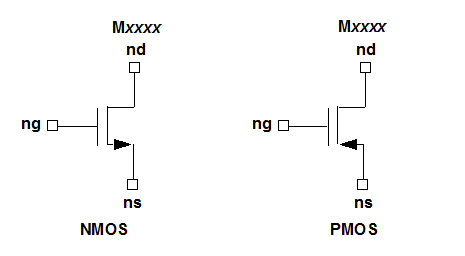

Mxxxx nd ng ns modelname [L=length] [W=width]

[NRD=val] [NRS=val] [M=val]

nd is the drain node, ng is the gate node, and ns is the source node of the MOSFET. modelname is the name of a Level 62 MOSFET model defined in a .MODEL statement elsewhere in the netlist.




Level 62 MOSFET Instance Parameters

Instance Parameter

Description

Unit

Default

L

Physical gate length

Meter

1e-4

M

Multiplier: simulates parallel transistors

None

1.0

NRD

Relative resistivity of the drain

Ohm/square

1.0

(If HDIF>0.0, NRD defaults to 0.0)

NRS

Relative resistivity of the source

Ohm/square

1.0

(If HDIF>0.0, NRS defaults to 0.0)

W

Physical gate width

Meter

1e-4


Netlist Example

M213 55 56 57 mos62
