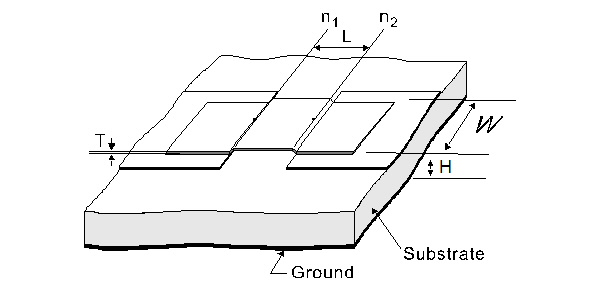

   Air Bridge, Rectangular Cross Section

Air Bridge, Rectangular Cross Section



[spacer]



[spacer]

Netlist Form

An instance of an air bridge with rectangular cross section (and no substrate) has the following Nexxim netlist syntax:

Axxx n1 n2 [W=val] [T=val] [L=val] [R=val] [H=val] COMPONENT=jump

n1 and n2 are the nodes connected to the air bridge. The entry COMPONENT=jump identifies the element.












Air Bridge Instance Parameters

Parameter

Description

Units

Default

W

Width of jumper wire

Meter

0.5e-3

T

Thickness of jumper wire

Meter

0.1e-3

L

Length of jumper wire

Meter

1.0e-3

R

Resistivity of the wire

mohm/cm

0.0

H

Height of jumper wire above ground plane

Meter

1.0e-3


Netlist Example

Ajumper1 1 2 W=0.3e-3 T=0.05e-3 L=0.8e-3 H=2.86e-3
+ COMPONENT=jump
