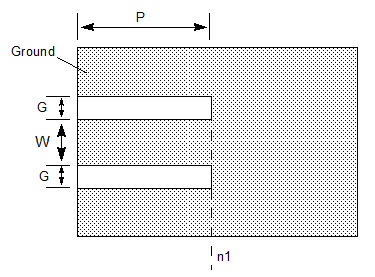

Shorted Stub, Physical Length with Reference



[spacer]







Netlist Format

An instance of a coplanar waveguide shorted stub, physical length with reference has the following netlist syntax:

Axxx n1 n2 [W=val] [G=val] [P=val]
COMPONENT=cpw_short_stub_physical SUBSTRATE=substrate_name

n1 is the name of the node attached to the open stub. n2 is the reference node. The entry COMPONENT=cpw_short_stub_physical identifies the element as a coplanar waveguide shorted stub, physical length.

The SUBSTRATE=substrate_name is the coplanar waveguide substrate model name selected for the design (see Selecting a Coplanar Waveguide Substrate for details).




Coplanar Waveguide Shorted Stub, Physical Length with Reference Instance Parameters

Parameter

Description

Units

Default

W

Width of center conductor

Meter

1.0e-3

G

Slot gap width

Meter

1.0e-3

P

Physical length

Meter

1.0e-3

Netlist Example

A5 Port1 Port2 W=0.75e-3 G=1.1e-3 P=2.5e-3 COMPONENT=cpw_short_stub_physical SUBSTRATE=CPW1

where CPW1, the selected layout technology or substrate type, has a definition such as:

.SUB CPW1 CPW(
+ H=0.001524 Er=4.4 TAND=0.02 HU=2.54E-4 HL=2.54e-4
+ MET1=1.724137931034483 T1=2.54e-5 RGH=0)
