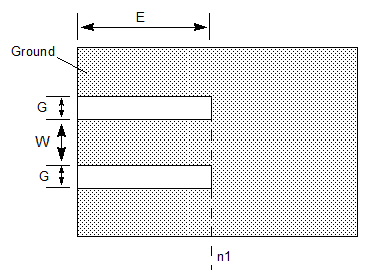

Shorted Stub, Electrical Length with Reference




[spacer]

Netlist Format

An instance of a coplanar waveguide shorted stub, electrical length with reference has the following netlist syntax:

Axxx n1 n2 [W=val] [G=val] [E=val] [F=val]
COMPONENT=cpw_short_stub_electrical SUBSTRATE=substrate_name

n1 is the name of the node attached to the shorted stub. n2 is the reference node. The entry COMPONENT=cpw_short_stub_electrical identifies the element as a coplanar waveguide shorted stub, electrical length.

The SUBSTRATE=substrate_name is the coplanar waveguide substrate model name selected for the design (see Selecting a Coplanar Waveguide Substrate for details).




Coplanar Waveguide Shorted Stub, Physical Length with Reference Instance Parameters

Parameter

Description

Units

Default

W

Width of center conductor

Meter

1.0e-3

G

Slot gap width

Meter

1.0e-3

E

Electrical length

Degree

45

F

Reference frequency for E

Hertz

1.0e9

Netlist Example

A5 Port1 Port2 W=0.75e-3 G=1.1e-3 E=50 F=.0e9 COMPONENT=cpw_short_stub_electrical SUBSTRATE=CPW1

where CPW1, the selected layout technology or substrate type, has a definition such as:

.SUB CPW1 CPW(
+ H=0.001524 Er=4.4 TAND=0.02 HU=2.54E-4 HL=2.54e-4
+ MET1=1.724137931034483 T1=2.54e-5 RGH=0)
