Open Stub, Physical Length




[spacer]

Netlist Format

An instance of a coplanar waveguide open stub, physical length has the following netlist syntax:

Axxx n1 [W=val] [G=val] [P=val] [GAP=val]
COMPONENT=cpw_open_stub_physical SUBSTRATE=substrate_name

n1 is the name of the node attached to the open stub. The entry COMPONENT=cpw_open_stub_physical identifies the element as a coplanar waveguide open stub, physical length.

The SUBSTRATE=substrate_name is the coplanar waveguide substrate model name selected for the design (see Selecting a Coplanar Waveguide Substrate for details).

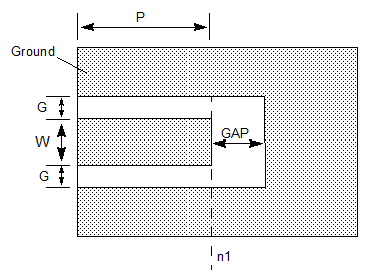

Coplanar Waveguide Open Stub, Physical Length Instance Parameters

Parameter

Description

Units

Default

W

Width of center conductor

Meter

1.0e-3

G

Slot gap width

Meter

1.0e-3

P

Physical length

Meter

5.0e-3

GAP

Gap width at end of CPW line

Meter

1.0e-3


Netlist Example

A5 Port1 W=0.75e-3 G=1.1e-3 P=2.5e-3 GAP=1.75e-3 COMPONENT=cpw_open_stub_physical SUBSTRATE=CPW1

where CPW1, the selected layout technology or substrate type, has a definition such as:

.SUB CPW1 CPW(
+ H=0.001524 Er=4.4 TAND=0.02 HU=2.54E-4 HL=2.54e-4
+ MET1=1.724137931034483 T1=2.54e-5 RGH=0)
