Ansoft Designer / Ansys Designer 在线帮助文档:


Nexxim Simulator >
Nexxim Component Models >
Coplanar Waveguide Elements >
   Air Bridge, Cross Over

Air Bridge, Cross Over



[spacer]



[spacer]

Netlist Form

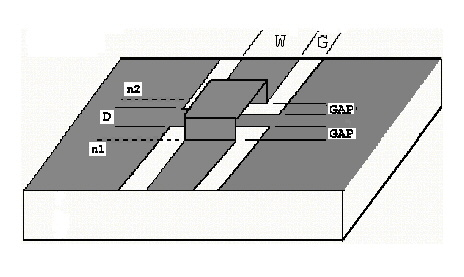

An instance of a coplanar waveguide air bridge cross over has the following Nexxim netlist syntax:

Axxx n1 n2 [W=val] [G=val] [HA=val] [GAP=val] [D=val]
+ COMPONENT=cpw_crossbridge SUBSTRATE=substrate_name

n1 and n2 are the nodes connected to the bridge. The entry COMPONENT=cpw_crossbridge identifies the element.

The SUBSTRATE=substrate_name is the coplanar waveguide substrate model name selected for the design (see Selecting a Coplanar Waveguide Substrate for details).








Air Bridge Cross Over Instance Parameters

Parameter

Description

Units

Default

W

Width of crossover bridge

Meter

1.0e-3

G

Width of gaps

Meter

1.0e-3

HA

Height of air bridge above conductor plane

Meter

3.0e-3

GAP

Width of open-end gap

Meter

1.0e-3

D

Distance of separation

Meter

3.0e-3


Netlist Example

Ajumper1 1 2 W=0.3e-3 G=0.5e-3 HA=2.0e-3 GAP=0.5e-3 D=2.0e-3
+ COMPONENT=cpw_crossbridge SUBSTRATE=CPW1

where CPW1, the selected layout technology or substrate type, has a definition such as:

.SUB CPW1 CPW(
+ H=0.001524 Er=4.4 TAND=0.02 HU=2.54E-4 HL=2.54e-4
+ MET1=1.724137931034483 T1=2.54e-5 RGH=0)
