   Coaxial Cable, Phase Velocity with Reference

Coaxial Cable, Phase Velocity with Reference



[spacer]



[spacer]

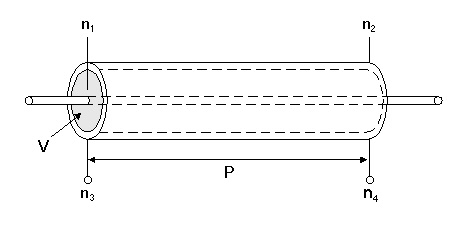

Coaxial Cable Netlist Format

The netlist syntax for a coaxial cable, elative phase velocity specified, is:

Axxxx n1 n2 n3 n4 COMPONENT=coax_cable_v
+ V=val P=val Z=val C1=val C2=val RB=val

n1 and n2 are the nodes attached to the cable. n3 and n4 are the reference nodes. The entry COMPONENT=coax_cable_v is required.




Coaxial Cable, Phase Velocity Instance Parameters

Parameter

Description

Unit

Default

V

Relative phase velocity

None

1.0

P

Physical length of cable

Meter

0.0127

Z

Characteristic impedance of lossless line

Ohm

50

C1

Conductor loss coefficient

dB/Meter

0.0

C2

Dielectric loss coefficient

dB/Meter

0.0

Coaxial Cable, Phase Velocity Netlist Example

Acable1 net_34 net_27 0 0 V=0.5 P=0.075 Z=50 C1=0.31622
+ C2=1.5e-2 component=coax_cable_v

Notes

1. The one-way attenuation is given by:



[spacer]





where fGHz is the frequency in GHz.

2. Relative phase velocity is defined as:



[spacer]





Where K is the dielectric constant of the cable filling material.
