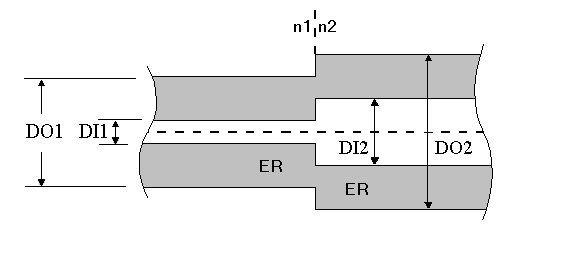

   Coaxial Cable, Step

Coaxial Cable, Step



[spacer]



[spacer]

Coaxial Cable Netlist Format

The netlist syntax for a coaxial cable, step is:

Axxxx n1 n2 COMPONENT=coax_cable_step
+ DI1=val DI2=val DO1=val DO2=val ER=val

n1 and n2 are the nodes attached to the cable. The entry COMPONENT=coax_cable_step is required.




Coaxial Cable, Step Parameters

Parameter

Description

Unit

Default

DI1

Smaller diameter of inner conductor

Meter

0.50e-3

DI2

Larger diameter of inner conductor

Meter

0.75e-3

DO1

Smaller diameter of outer conductor

Meter

1.00e-3

DO2

Larger diameter of outer conductor

Meter

1.50e-3

ER

Dielectric constant of the cable filler material

None

1.0

Coaxial Cable, Step Netlist Example

Acable1 net_34 net_27 DI1=0.4e-3 DI2=0.8e-3 DO1=1.1e-3
+ DO2=1.6e-3 ER=2.1 component=coax_cable_step
