   Coaxial Cable, Partially Filled

Coaxial Cable, Partially Filled



[spacer]



[spacer]

Coaxial Cable Netlist Format

The netlist syntax for a coaxial cable, partially filled is:

Axxxx n1 n2 COMPONENT=coax_cable_partfilled
+ DI=val DO=val P=val ER1=val ER2=val
+ TAND1=val TAND2=val THETA=val RB=val

n1 and n2 are the nodes attached to the cable. The entry COMPONENT=coax_cable_partfilled is required.


Coaxial Cable, Partially Filled Parameters

Parameter

Description

Unit

Default

DI

Diameter of inner conductor

Meter

0.25e-3

DO

Inner diameter of outer conductor

Meter

0.75e-3

DD

Diameter of electric wedge

Meter

0.5e-3

P

Physical length of cable

Meter

10e-3

ER1

Dielectric constant of the material filling the main line

None

3.0

ER2

Dielectric constant of the dielectric wedge

None

10.0

TAND1

Dielectric loss tangent of the material filling the main line

None

0.0

TAND2

Dielectric loss tangent of the dielectric wedge

None

0.0

THETA

Angle of the wedge

Degree

30.0

RB

Conductor resistivity

mOhm-cm

0.0

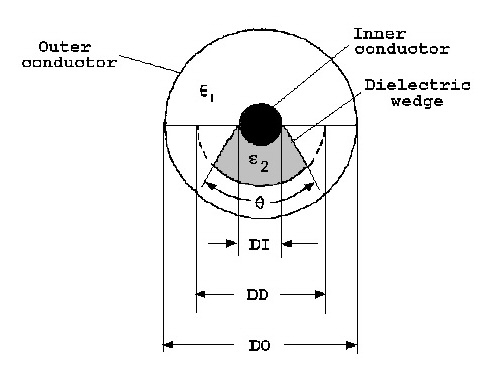

Coaxial Cable, Partially Filled Netlist Example

Acable1 net_34 net_27 DI=0.001 DO=0.003 DD=0.002 P=.10
+ ER1=1 ER2=2.6 THETA=30 RB=1.64
+ component=coax_cable_partfilled
