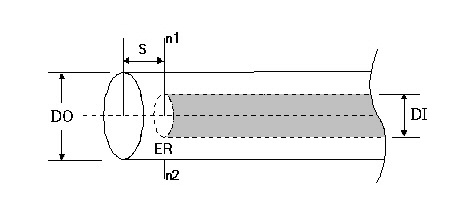

   Coaxial Cable, Open with Reference

Coaxial Cable, Open with Reference



[spacer]



[spacer]

Coaxial Cable Netlist Format

The netlist syntax for a coaxial cable, open with reference is:

Axxxx n1 n2 COMPONENT=coax_cable_open
+ DI=val DO=val S=val ER=val

n1 is the node attached to the cable. n2 is the reference node. The entry COMPONENT=coax_cable_open is required.






Coaxial Cable, Open with Reference Parameters

Parameter

Description

Unit

Default

DI

Diameter of inner conductor

Meter

2e-3

DO

Inner diameter of outer conductor

Meter

6e-3

S

Gap between open end and inner conductor wall

Meter

0.1e-3

ER

Dielectric constant of the insulator

None

1.0


Coaxial Cable, Open with Reference Netlist Example

Acable2 net_34 0 DI=0.001 DO=0.003 S=0.2e-3
+ ER=2.1 component=coax_cable_open
