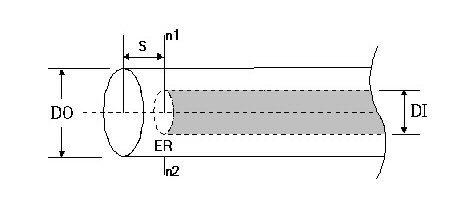

   Coaxial Cable, Open

Coaxial Cable, Open



[spacer]



[spacer]

Coaxial Cable Netlist Format

The netlist syntax for a coaxial cable, open is:

Axxxx n1 COMPONENT=coax_cable_open
+ DI=val DO=val S=val ER=val

n1 is the node attached to the cable. The entry COMPONENT=coax_cable_open is required.




Coaxial Cable, Open Parameters

Parameter

Description

Unit

Default

DI

Diameter of inner conductor

Meter

2.0e-3

DO

Inner diameter of outer conductor

Meter

6.0e-3

S

Gap between open end and inner conductor wall

Meter

0.1e-3

ER

Dielectric constant of the filler material

None

1.0

Coaxial Cable, Open Netlist Example

Acable1 net_34 DI=0.001 DO=0.003 S=0.0002
+ ER=2.1 component=coax_cable_open
