Ansoft Designer / Ansys Designer 在线帮助文档:


Nexxim Simulator >
Nexxim Component Models >
Controlled Sources >
   Current-Controlled Voltage Source, Delay

Current-Controlled Voltage Source, Delay



CCVS Delay Netlist Format

The format for a current-controlled voltage source with delay is:

Hxxxx n+ n- [CCVS] DELAY vin TD=val

[SCALE=val] [TC1=val] [TC2=val]

n+ is the positive node and n- is the negative node of the voltage source. The entry CCVS is the default for the H element type. The entry DELAY selects the H element delay type. vin is a voltage source on the branch through which the control current flows.

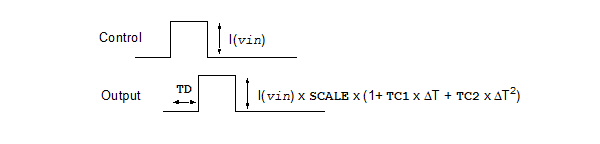

The figure below diagrams the operation of the CCVS delay element:








Delay CCVS Instance Parameters

Parameter

Description

Unit

Default

SCALE

Multiplier for voltage

None

1.0

TC1

Linear (1st-order) temperature coefficient

°K-1

0.0

TC2

Quadratic (2nd-order) temperature coefficient

°K-2

0.0

TD

Time delay. Must be ³ 0.

Second

None


CCVS Delay Netlist Example

H23 inplus 0 CCVS DELAY V13 TD=2.0e-2
