   Current-Controlled Current Source, Delay

Current-Controlled Current Source, Delay



CCCS Delay Netlist Format

The format for a current-controlled current source with delay is:

Fxxxx out+ out- [CCCS] DELAY vin TD=val

[SCALE=val] [TC1=val] [TC2=val]

out+ is the positive node and out- is the negative node of the current source. The entry CCCS is the default for the F element type. The entry DELAY selects the F element delay type. vin is a voltage source through which the control current flows. The input voltage source must be defined elsewhere in the netlist.

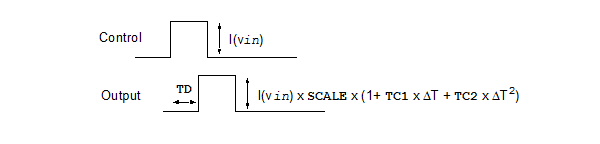

The figure below diagrams the operation of the CCVS delay element:








Delay CCCS Instance Parameters

Parameter

Description

Unit

Default

SCALE

Multiplier for current

None

1.0

TC1

Linear (1st-order) temperature coefficient

°K-1

0.0

TC2

Quadratic (2nd-order) temperature coefficient

°K-2

0.0

TD

Time delay. Must be ³ 0.

Second

None


CCCS Delay Netlist Example

F23 in5 0 CCCS DELAY V11 TD=2.0e-5
