Bipolar Transistor Instance, HiCUM Model (Level 8)

Bipolar Transistor Instance, HiCUM Model (Level 8)

Netlist Syntax

The syntax for a level 8 HiCUM model BJT instance is:

Qxxxx nc nb ne [ns] [nt] modelname [AREA=val]

[M=val] [TNOM=val] [DTEMP=val] [TNODEOUT]

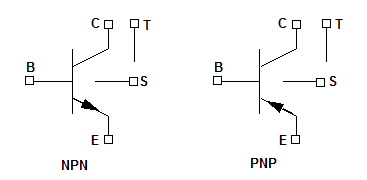

nc is the collector node, nb is the base node, ne is the emitter node, ns is the substrate node, and nt is the self-heating node of the transistor. The modelname is the name of a level 8 BJT model defined in a .MODEL statement elsewhere in the netlist. The TNODEOUT flag indicates that node nt is present but node ns is not present.

**Level 8 HiCUM BJT Instance Parameters**
Instance Parameter	Description	Unit	Default
AREA	Emitter area factor for currents, resistances, and capacitances	None	1.0
M	Multiplier: simulates parallel transistors	None	1
TNOM	Circuit temperature	°C	27
DTEMP	Difference between capacitor and circuit temperatures	°C	0
TNODEOUT	Flag to indicate that node nt is present but node ns is not present	None	None

Netlist Example

Q21 22 33 44 bjth8 DTEMP=5
