   Bipolar Transistor Instance, Philips MEXTRAM 503/504 (Level 6)

Bipolar Transistor Instance, Philips MEXTRAM 503/504 (Level 6)



Philips MEXTRAM 503/504 BJT Instance Netlist Syntax

The syntax for a Level 6 Philips MEXTRAM Version 503 or Version 504 BJT instance is:

Qxxxx nc nb ne [ns] modelname

[[AREA=]val] [M=val] [TNOM=val] [DTEMP=val]

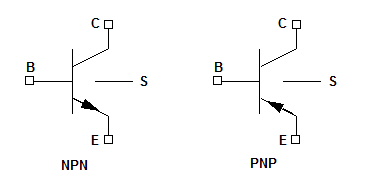

nc is the collector node, nb is the base node, ne is the emitter node, and ns is the substrate node of the transistor. The modelname is the name of a Level 6 Philips MEXTRAM Version 503 or 504 BJT model defined in a .MODEL statement elsewhere in the netlist.

Philips MEXTRAM Version 503 and Version 504 have the same instance parameters.




Level 6 Philips MEXTRAM 503/504 BJT Instance Parameters

Instance Parameter

Description

Unit

Default

AREA

Emitter area factor for currents, resistances, and capacitances

None

1.0

M (MULT)

Multiplier: simulates parallel devices

None

1

DTEMP (DTA)

Difference between transistor and circuit temperatures

°C

0


Philips MEXTRAM 503/504 BJT Instance Netlist Example

Q23 87 88 89 90 bjt504 AREA=1.15
