Bipolar Transistor Instance, Quasi-Saturation (Level 2)

Bipolar Transistor Instance, Quasi-Saturation (Level 2)

Quasi-Saturation BJT Instance Netlist Syntax

The syntax for a Level 2 quasi-saturation BJT instance is:

Qxxxx nc nb ne [ns] modelname

[[AREA=]val] [AREAB=val] [AREAC=val]

[M=val] [TNOM=val] [DTEMP=val]

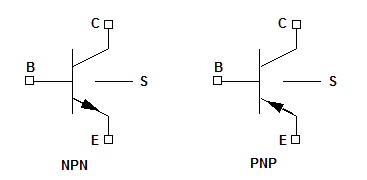

nc is the collector node, nb is the base node, ne is the emitter node, and ns is the substrate node of the transistor. The modelname is the name of a Level 2 BJT model defined in a .MODEL statement elsewhere in the netlist.

The Level 2 quasi-saturation model BJT has the same instance parameters and default values as the Level 1 BJT. See Bipolar Transistor, Linear.
