   Bipolar Transistor Instance, HiCUM L0 Model (Level 13)

Bipolar Transistor Instance, HiCUM L0 Model (Level 13)



Netlist Syntax

The syntax for a level 13 HiCUM L0 model BJT instance is:

Qxxxx nc nb ne [ns] [nt] modelname [AREA=val]

[M=val] [DTEMP=val] [TNODEOUT]

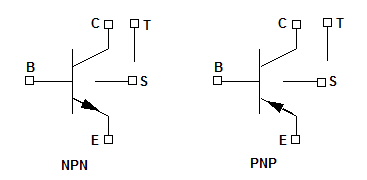

nc is the collector node, nb is the base node, ne is the emitter node, ns is the substrate node, and nt is the self-heating node of the transistor. The modelname is the name of a level 8 BJT model defined in a .MODEL statement elsewhere in the netlist. The TNODEOUT flag indicates that node nt is present but node ns is not present.




Level 13 HiCUM BJT Instance Parameters

Instance Parameter

Description

Unit

Default

AREA

Emitter area factor for currents, resistances, and capacitances

None

1.0

M

Multiplier: simulates parallel transistors

None

1

TNOM

Circuit temperature

°C

27

DTEMP

Difference between capacitor and circuit temperatures

°C

0

TNODEOUT

Flag to indicate that node nt is present but node ns is not present

None

None


Netlist Example

Q21 22 33 44 bjth13 DTEMP=5
