Bipolar Transistor Instance, Philips MODELLA Model (Level 10)

Bipolar Transistor Instance, Philips MODELLA Model (Level 10)

Netlist Syntax

The syntax for a level 10 Philips MODELLA model BJT instance is:

Qxxxx nc nb ne [ns] modelname [M=val] [DTEMP=val]

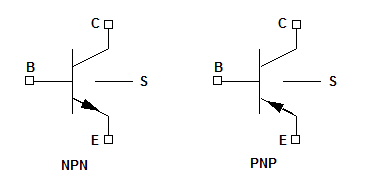

nc is the collector node, nb is the base node, ne is the emitter node, and ns is the substrate node of the transistor. The modelname is the name of a level 10 BJT model defined in a .MODEL statement.

**Level 10 Philips MODELLA BJT Instance Parameters**
Instance Parameter	Description	Unit	Default
M (MULT)	Multiplier: simulates parallel transistors	None	1.0
DTEMP (DTA)	Difference between capacitor and circuit temperatures	°C	0

Netlist Example

Q5 10 11 12 13 bjt24 DTEMP=5
