   Series Switch Buffer

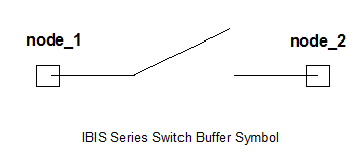

Series Switch Buffer



Netlist Syntax

B_SERIES_SWxxx node1 node2

+ file='filename' model='model_name'

+ buffer=16|series_switch

+ [typ=typ|min|max|fast|slow]

+ [ss_state=on|off]

+ [interpol=1|2]

+ [nowarn]

+ [all_sm=0|1]

Node1 is the input, node2 is the output.




IBIS Series Switch Instance Parameters

Parameter

Description

Units

Default

FILE

Name of IBIS file

None

None

MODEL

Name of model in IBIS file. The model type must match the instance type.

None

None

BUFFER

Code or token for buffer type. Must be 16 or series_switch for the Series Switch type

None

None

TYP

Parameter range:

typ=midrange of all values

min=minimum of all values

max=maximum of all values

fast=maxima and minima selected to produce the fastest transitions.

slow=maxima and minima selected to produce the slowest transitions.

See TYP Parameter Effects for all IBIS Buffers for fast and slow settings.

None

typ

SS_STATE

Switch setting, on or off.

None

on

INTERPOL

Interpolation: 1=linear, 2=spline

This parameter is ignored when ALL_SM=1.

None

1

NOWARN

When present, disable parser warnings.

None

Warnings enabled

ALL_SM

Series MOSFET: 0=use first table only, 1=use all tables.

If ALL_SM=1 and more than one table exists, parameter INTERPOL is ignored and Nexxim uses a fixed method for processing the multi-table data

None

0
